6.1.0

With RuStore you can integrate payments in your mobile app.

tip

If you are in doubt read the instruction in the usage scenarios.

Implementation example

Look at the example app to learn how to integrate the SDK.

Prerequisites

App uploaded to RuStore Console.
App passed moderation (you don't have to publish the app).

Important

Test build signature (for example: debug) of the app must match the signature of the app build that was uploaded to the console and passed moderation (for example, release).

The user and the app are not banned in RuStore.
In-app purchases for the app are enabled in RuStore Console.
Defold 1.6.2 and later.

caution

The service has some restrictions to work outside of Russia.

Connect to project

Connecting to project

Copy the plugin and the sample app projects from the official RuStore repository on GitFlic.
Copy the billing_example/extension_rustore_billing and billing_example/extension_rustore_core folders in the root of your project.

Deeplink handling

RuStore SDK uses deeplink to handle third-party payment applications. This makes it easier to pay with third-party apps and return to your app.

To configure deeplinks functionality in your app and RuStore SDK, define deeplinkScheme in your AndroidManifest file and redefine the onNewIntent method of your activity.

AndroidManifest.xml
<activity>
<!-- RUSTORE BILLING INTENT FILTER -->
<activity android:name="ru.rustore.defold.billing.RuStoreIntentFilterActivity" android:exported="true" android:launchMode="singleTask">
    <intent-filter>
        <action android:name="android.intent.action.VIEW" />
        <category android:name="android.intent.category.DEFAULT" />
        <category android:name="android.intent.category.BROWSABLE" />
        <!-- Set your appscheme -->
        <data android:scheme="yourappscheme" />
    </intent-filter>
</activity>

Replace yourappscheme in the example above with the name of your scheme. For example, ru.package.name.rustore.scheme.

info

The scheme defined in the Androidmanifest file must match the scheme you specify in the create method of the RuStore SDK billing.

App example contains a modified manifest in the billing_example/extension_rustore_billing/manifests/android/AndroidManifest.xml file

Initialization

Initialize the library before calling its methods.

For initialization, call the init() method.

Calling init
local APPLICATION_ID = "123456"
local DEEPLINK_SCHEME = "yourappscheme"
local DEBUG_LOGS = true

rustorebilling.init(APPLICATION_ID, DEEPLINK_SCHEME, DEBUG_LOGS)

APPLICATION_ID — product ID form the RuStore Console.

Where are app IDs in the RuStore Console?

Navigate to the Applications tab and selected the needed app.
Copy the ID from the URL address of the app page — it is a set of numbers between apps/ and /versions. FOr example, for URL address https://console.rustore.ru/apps/123456/versions the app ID is 123456.

DEEPLINK_SCHEME — deeplink scheme that i sused to return to your app after paying with a third party payment app (for example, SberPay or SBP). SDK generates its own host to this scheme.
DEBUG_LOGS — flag that enables/disables logging. Set it to true, if you want events to be logged. Otherwise, set it to false.

note

Tye deeplink scheme that is passed in DEEPLINK_SCHEME must match the scheme specified in AndroidManifest.xml (see Deeplink processing).

Before you start

Payments availability check

The current version of RuStore is installed on the user's device.
RuStore app supports payments.
User is authorized in RuStore.
The user and the app are not banned in RuStore.
In-app purchases for the app are enabled in RuStore Console.

You must subscribe to events once before using this method:

rustore_check_purchases_available_success;
rustore_check_purchases_available_failure.

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_check_purchases_available_success", _check_purchases_available_success)
    rustorecore.connect("rustore_check_purchases_available_failure", _check_purchases_available_failure)
end

function _check_purchases_availability_success(self, channel, value)
    local data = json.decode(value)
end

function _check_purchases_availability_failure(self, channel, value)
    local data = json.decode(value)
end

Calling check_purchases_availability
rustorebilling.check_purchases_availability()

The rustore_check_purchases_availability_success callback returns a JSON string with the service availability information (see below).

isAvailable — compliance with the payments availability conditions (true/false).
cause — error information.

The error structure is described in Error Handling.

The rustore_check_purchases_availability_failure callback returns a JSON string with the error information. The error structure is described in Error Handling.

Working with SDK

Retrieving products list

You verified that payments are available and the users are able to make purchases. Now you can request products list. Use the get_products() method to request the information about products added to your app in RuStore Console.

You must subscribe to events once before using this method:

rustore_on_get_products_success;
rustore_on_get_products_failure.

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_on_get_products_success", _on_get_products_success)
    rustorecore.connect("rustore_on_get_products_failure", _on_get_products_failure)
end

function _on_get_products_success(self, channel, value)
    local data = json.decode(value)
end

func _on_get_products_failure(self, channel, value)
    local data = json.decode(value)
end

Calling get_products
local PRODUCT_IDS = {
    "non_con2",
    "non_con1",
    "con2",
    "con1",
    "sub2",
    "sub1"}

rustorebilling.get_products(PRODUCT_IDS)

PRODUCT_IDS — the list of product IDs. Must not exceed 100 entries.

To specify id of the products needed for the method, do the following.

Open RuStore Console.
Navigate to the Applications tab.
Select the necessary app.
In the left side menu select Monetization.
Select product type: Subscriptions or In-App purchases.
Copy the IDs of the required products. These are product ids.

The rustore_on_get_products_success callback returns a JSON string with the products information (see below).

currency — ISO 4217 currency code.
description — descriptions in language.
imageUrl — image URL.
language — language specified with BCP 47 code.
price — price in minimum currency units.
priceLable — formatted product price, including currency symbol in language.
productId — product ID assigned to product in RuStore Console (mandatory).
productStatus — product type: CONSUMABLE/NON-CONSUMABE/SUBSCRIPTION.
productType — product status.
promoImageUrl — promo image URL.
title — product name in language.
subscription — subscription description, returns only for subscription products.

Available subscription fields (see below).

subscriptionPeriod — subscription period.
freeTrialPeriod — subscription trial period.
gracePeriod — subscription grace period.
introductoryPrice — formated introductory price with the currency symbol in the product:language language.
introductoryPriceAmount — introductory price in minimum currency units.
introductoryPricePeriod — introductory price invoice period.

Available fields of the period object (see below).

years — amount of years.
months — amount of months.
days — amount of days.

The rustore_on_get_products_failure callback returns a JSON string with the error information. The error structure is described in Error Handling.

Purchasing product

To purchase product, use the purchase_product() method.

You must subscribe to events once before using this method:

rustore_on_purchase_product_success;
rustore_on_purchase_product_failure.

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_on_purchase_product_success", _on_purchase_product_success)
    rustorecore.connect("rustore_on_purchase_product_failure", _on_purchase_product_failure)
end

function _on_purchase_product_success(self, channel, value)
    local data = json.decode(value)
end

function _on_purchase_product_failure(self, channel, value)
    local data = json.decode(value)
end

Calling purchase_product
local PRODUCT_ID = "example_id"
local PARAMS = "{" ..
	"\"orderId\":\"example\"," ..
	"\"quantity\":1," ..
	"\"payload\":\"example\"" ..
	"}"

rustorebilling.purchase_product(PRODUCT_ID, PARAMS)

PRODUCT_ID — product ID assigned to product in RuStore Console (mandatory);
PARAMS — optional parameters:
- orderId — payment ID generated by the app (optional). If you specify this parameter in your system, you will receive it via our API. If not specified, will be generated automatically (uuid). 150 characters max;
- quantity — product amount (optional, value 1 will be used if not specified);
- payload — string with additional order information, that you can specify on purchase initialization.

Therustore_on_purchase_product_success callback returns a JSON string with the purchase information. Available fields:

type — request result type
- Success - successful purchase result;
- Failure - there was a problem during sending payment request or receiving payment status, purchase status unknown;
- Cancelled — payment request sent, although, the user closed the payment screen on their app, thus, the payment result is unknown;
- InvalidPaymentState — SDK payments error. May occur due to an incorrect return deeplink.
data — JSON string with optional fields.

The Success object is returned if a request is successful. Available fields:

orderId — payment ID generated by the app (optional). If you specify this parameter in your system, you will receive it via our API. If not specified, will be generated automatically (uuid). 150 characters max.
purchaseId — product ID.
productId — product ID assigned to product in RuStore Console (mandatory).
invoiceId — invoice ID.
sandbox — test payment flag. true — test payment, false — actual payment.
subscriptionToken — purchase token for server validation .

The Failure object is returned if there was an error during request processing. Available fields:

purchaseId — product ID.
invoiceId — invoice ID.
orderId — payment ID generated by the app (optional). If you specify this parameter in your system, you will receive it via our API. If not specified, will be generated automatically (uuid). 150 characters max.
quantity — product amount (optional, value 1 will be used if not specified).
productId — product ID assigned to product in RuStore Console (mandatory).
sandbox — test payment flag. true — test payment, false — actual payment.
errorCode — error code.

Error codes are described in section Error codes.

The Cancelled object returns if a purchase is canceled by the user. Available fields:

purchaseId — product ID.
sandbox — test payment flag. true — test payment, false — actual payment.

The InvalidPaymentState object is returned if there is an SDK error. For example, if there is an incorrect return deeplink.

The rustore_on_purchase_product_failure callback returns a JSON string with the error information. The error structure is described in Error Handling.

Getting products list

This method returns purchases with the following statuses. For more informations on possible purchase states see Getting purchase info.

Type/Status	`INVOICE_CREATED`	`CONFIRMED`	`PAID`
`CONSUMABLE`	+		+
`NON-CONSUMABLE`	+	+
`SUBSCRIPTION`	+	+

note

This method returns incomplete purchases that require attention. Also, it shows confirmed subscriptions and consumable products that cannot be purchased more than once.

Go get the user's purchases list, use the get_purchases() method.

You must subscribe to events once before using this method:

rustore_on_get_purchases_success;
rustore_on_get_purchases_failure.

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_on_get_purchases_success", _on_get_purchases_success)
    rustorecore.connect("rustore_on_get_purchases_failure", _on_get_purchases_failure)
end

function _on_get_purchases_success(self, channel, value)
    local data = json.decode(value)

    for key, value in pairs(data) do
        -- value.amount
    end
end

function _on_get_purchases_failure(self, channel, value)
    local data = json.decode(value)
end

Calling get_purchases
rustorebilling.get_purchases()

The rustore_on_get_purchases_success callback returns an object array with the information about purchases. Available fields:

amount — price in minimum currency units.
amountLable — formatted purchase price, including currency symbol.
currency — ISO 4217 currency code.
developerPayload — string with additional order information, that you can specify on purchase initialization.
invoiceId — invoice ID.
language — language specified with BCP 47 code.
orderId — payment ID generated by the app (optional). If you specify this parameter in your system, you will receive it via our API. If not specified, will be generated automatically (uuid). 150 characters max.
productId — product ID assigned to product in RuStore Console (mandatory).
productType — product type: CONSUMABLE/NON-CONSUMABE/SUBSCRIPTION.
purchaseId — product ID.

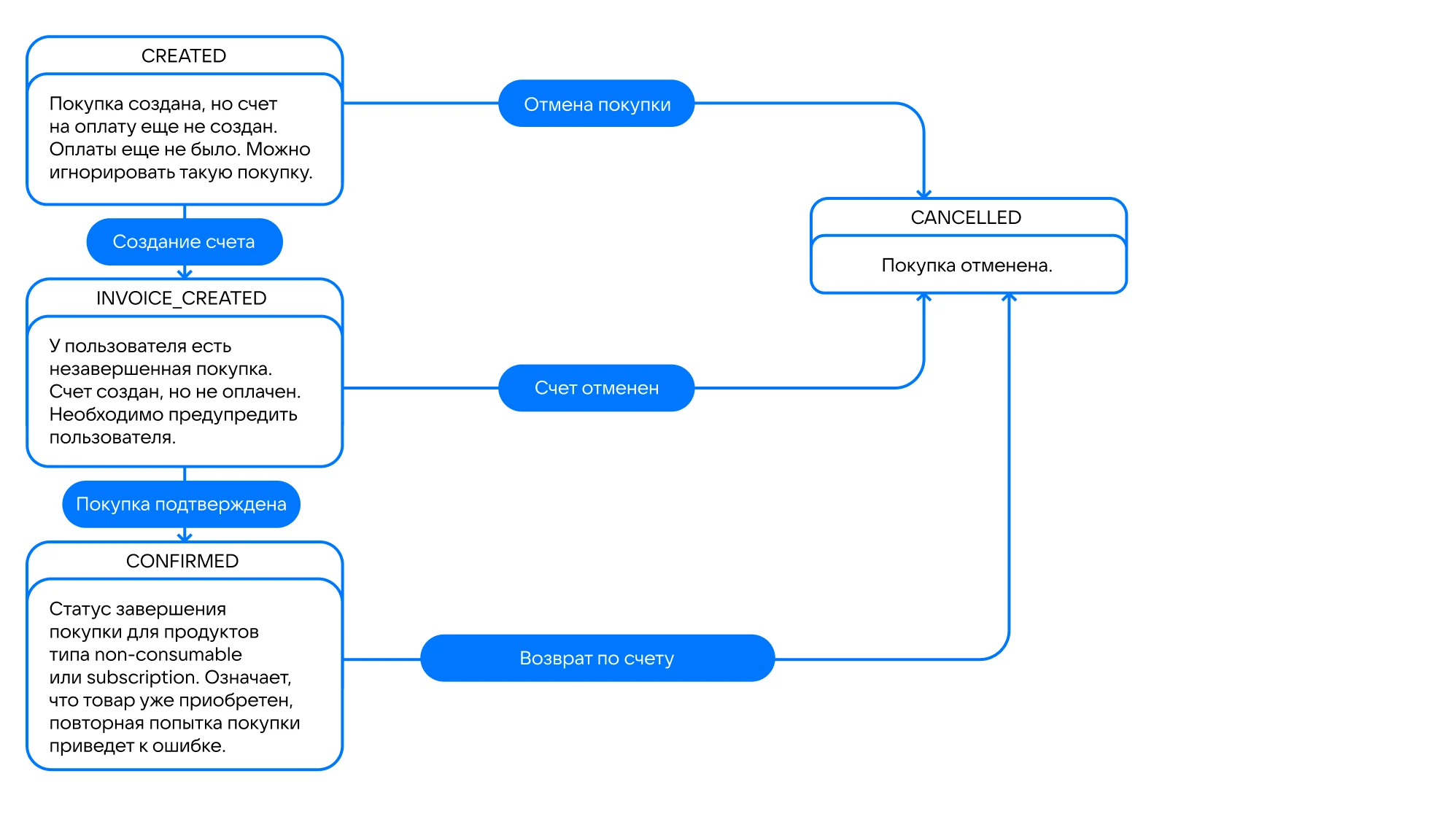

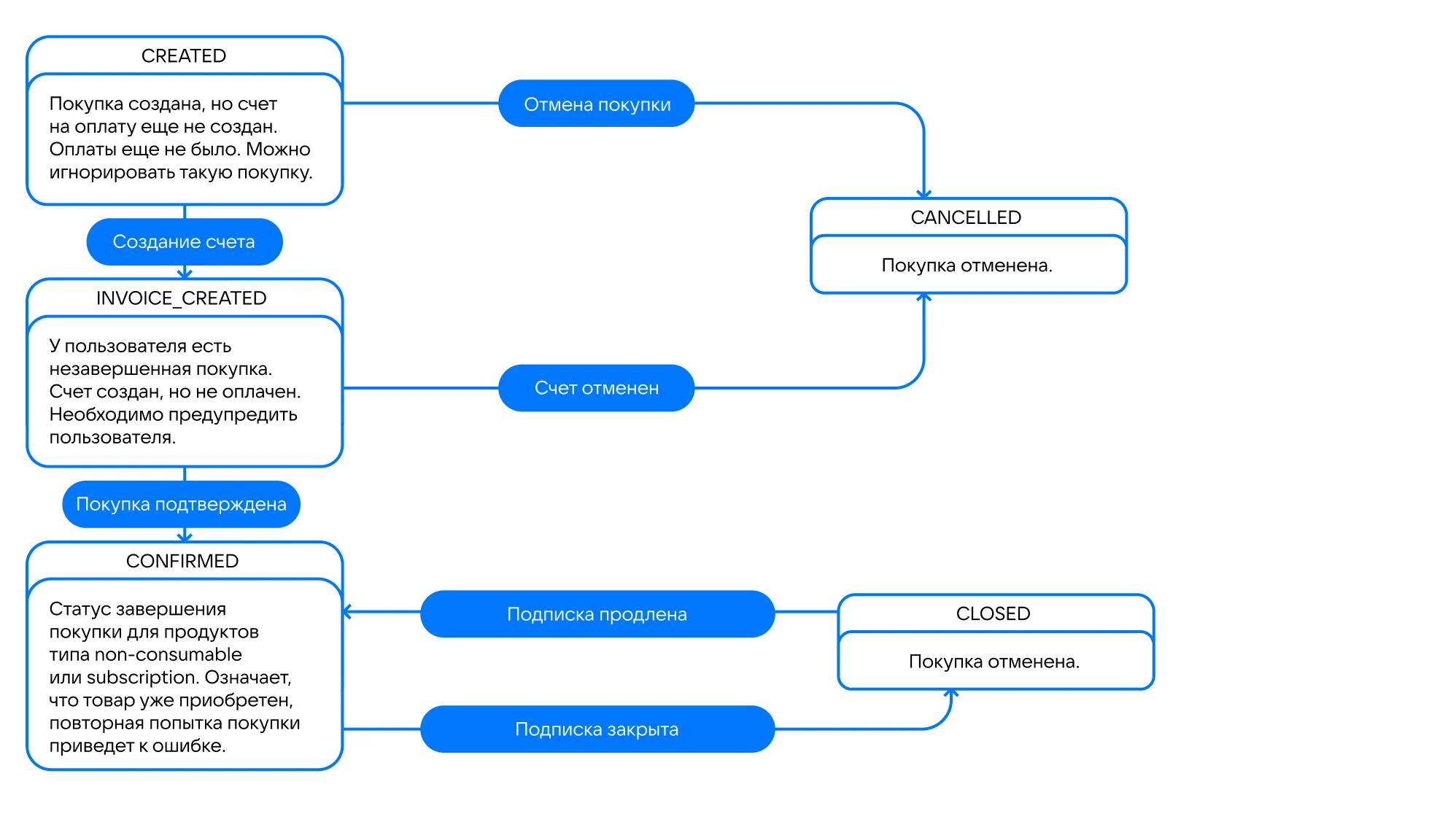

purchaseState — purchase state:
purchaseTime — purchase time.
quantity — product amount (optional, value 1 will be used if not specified).
subscriptionToken — purchase token for server validation .

The rustore_on_get_purchases_failure callback returns a JSON string with the error information. The error structure is described in Error Handling.

Getting purchase information

Go get purchase information, use the get_purchase_info() method.

You must subscribe to events once before using this method:

rustore_on_get_purchase_info_success;
rustore_on_get_purchase_info_failure.

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_on_get_purchase_info_success", _on_get_purchase_info_success)
    rustorecore.connect("rustore_on_get_purchase_info_failure", _on_get_purchase_info_failure)
end

function _on_get_purchase_info_success(self, channel, value)
    local data = json.decode(value)
end

function _on_get_purchase_info_failure(self, channel, value)
    local data = json.decode(value)
end

Calling get_purchase_info
# Your purchase information request UI implementation
function _on_get_purchase_info_pressed(purchaseId):
    rustorebilling.get_purchase_info(purchaseId)
end

purchaseId — product ID

The rustore_on_get_purchase_info_success callback returns a JSON string with the purchase information

amount — price in minimum currency units.
amountLable — formatted purchase price, including currency symbol.
currency — ISO 4217 currency code.
developerPayload — string with additional order information, that you can specify on purchase initialization.
invoiceId — invoice ID.
language — language specified with BCP 47 code.
orderId — payment ID generated by the app (optional). If you specify this parameter in your system, you will receive it via our API. If not specified, will be generated automatically (uuid). 150 characters max.
productId — product ID assigned to product in RuStore Console (mandatory).
productType — product type: CONSUMABLE/NON-CONSUMABE/SUBSCRIPTION.
purchaseId — product ID.
purchaseState — purchase state:
purchaseTime — purchase time.
quantity — product amount (optional, value 1 will be used if not specified).
subscriptionToken — purchase token for server validation .

The rustore_on_get_purchase_info_failure callback returns a JSON string with the error information. The error structure is described in Error Handling.

State model (purchaseState)

CONSUMABLES - purchase state model

NON-CONSUMABLES - purchase state model

(SUBSCRIPTIONS) - purchase state model

Consume (confirm) purchase

Products that require confirmation

Please, keep in mind the purchase type. Confirmation is only needed if your product is CONSUMABLE and can be purchased more than once.

To correctly deliver such products, confirm purchases with the confirmPurchase method. On delivering a product, use server validation. Deliver your product only after the payment (invoice) is in the CONFIRMED status. Use the addOnSuccessListener callback of the confirmPurchase method to deliver products.

Attention!

The PAID status is intermediate and meas that the user's money is put on hold on their card, so you need to confirm the purchase.

The exceptions are SBP or mobile payment — see the explanation below.

When paying for CONSUMABLE products with SBP or mobile payment, one-stage payment is used, although the payment model is as in two-stage payments. It means that what a payment is in the PAID status, when paying with SBP or mobile payment, the money is withdrawn from the buyer's account, as well as the developer's fee is withdrawn from theirs. In this case, if a purchase is canceled from the PAID status the refund is made, not reverse. The developer's fee will not be returned. At the same time, to complete the purchase you still have to confirm purhchase — see the table below.

Payment method	Payment type	Payment in the `PAID` status
bank cards; Sber ID; SberPay; T-Pay; VK Pay.	Two-stage	Money is on hold on the buyer's account. Developer's fee is not applied. Payment cancellation (reverse) is available.
SBP; mobile payment.	One-stage	Money is withdrawn from the buyer's account. The developer's fee is applied. If a purchase is canceled form the `PAID` status the transaction is refunded, not reverse reversed. The developer's fee will not be returned.

ConfirmPurchase request

Us the confirm_purchase() method to confirm a purchase. Purchase confirmation request must be accompanied by the delivery of the product. After calling the confirmation method the purchase changes its state to CONSUMED.

You must subscribe to events once before using this method:

rustore_on_confirm_purchase_success;
rustore_on_confirm_purchase_failure.

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_on_confirm_purchase_success", _on_confirm_purchase_success)
    rustorecore.connect("rustore_on_confirm_purchase_failure", _on_confirm_purchase_failure)
end

function _on_confirm_purchase_success(self, channel, value)
    local data = json.decode(value)
end

function _on_confirm_purchase_failure(self, channel, value)
    local data = json.decode(value)
end

Calling confirm_purchase
# Your purchase confirmation UI implementation
function _on_confirm_purchase_pressed(purchaseId):
    rustorebilling.confirm_purchase(purchaseId)
end

purchaseId — product ID.

Server validation

If you need to validate a successful app using API RuStore methods, you can use the subscriptionToken value, from the json string received upon a successful product purchase.

SubscriptionToken consists of invoiceId and userId of the purchase separated by period: $invoiceId.$userId.

Getting subscriptionToken from the purchase result

function _on_purchase_product_success(self, channel, value)
    local data = json.decode(value)

    if data.type == "Success" then
        local subscriptionToken = data.data.subscriptionToken
        yourApi.validate(subscriptionToken)
    end
end

You can also get subscriptionToken from the purchases list.

function _on_get_purchases_success(self, channel, value)
    local data = json.decode(value)

    for key, value in pairs(data) do
        yourApi.validate(value.subscriptionToken)
    end
end

Purchase cancellation

To cancel a purchase, use the delete_purchase method.

You must subscribe to events once before using this method:

rustore_on_delete_purchase_success;
rustore_on_delete_purchase_failure.

Calling cancellation method

Subscription to events
function init(self)
    # rustorebilling initialization

    rustorecore.connect("rustore_on_delete_purchase_success", _on_delete_purchase_success)
    rustorecore.connect("rustore_on_delete_purchase_failure", _on_delete_purchase_failure)
end

function _on_delete_purchase_success(self, channel, value)
    local data = json.decode(value)
end

function _on_delete_purchase_failure(self, channel, value)
    local data = json.decode(value)
end

Calling delete_purchase
# Your purchase cancellation UI implementation
function _on_delete_purchase_pressed(purchaseId):
    rustorebilling.delete_purchase(purchaseId)
end

purchaseId — product ID.

The rustore_on_delete_purchase_success callback returns purchase ID:

purchaseId — product ID.

The rustore_on_delete_purchase_failure callback returns a JSON string with the error information. Available fields:

purchaseId — product ID.
cause — error information.

The error structure is described in Error Handling.

info

Use this method if your app logic is related to purchase cancellation. The purchase is canceled automatically after a 20-min timeout, or upon a second purchase from the same customer.

Handling pending payments

Handling of unfinished payments is done by the developer.

To confirm a purchase of CONSUMABLE product in the PAID state, call the [purchase confirmation method].(#confirm) (see Retrieve purchase details).

When dealing with purchase cancellation using payment processing methods take into account your business logic. Some developers implement additional checks before purchase confirmation or cancellation. In that case, make a separate purchase state request.

tip

For example, if the user paid for the product that you cannot deliver for some reason, call the payment cancellation method for the purchase in the PAID status to cancel the purchase.

If the get purchases list method returns a purchase in the INVOICE_CREATED state, you can us the purchase cancellation method. For instance, if you don't want to see a purchase in that state in the purchase list. This is optional as RuStore handles cancellation of such purchases on its side.

info

In some cases, after paying with a bank app (SBP, SberPay, T-Pay, etc.) and returning to your app the purchase status may still be INVOICE_CREATED while payment status shows that the purchase failed. This is caused by the purchase processing time by the bank. In this case, you need to adapt your screen lifecycle to the product list retrieval logic.

Alternatively, you can implement cancellation of purchases in the INVOICE_CREATED state only through user action in your app. For example, create a dedicated button for this purpose.

Event logging

If you need to log payment library events, add optional debugLogs in the init call and subscribe to the events:

rustore_on_payment_logger_debug;
rustore_on_payment_logger_error;
rustore_on_payment_logger_info;
rustore_on_payment_logger_verbose;
rustore_on_payment_logger_warning.

local APPLICATION_ID = "123456"
local DEEPLINK_SCHEME = "yourappscheme"
local DEBUG_LOGS = true
local LOG_TAG = "yourtag"

function init(self)
    rustorecore.connect("rustore_on_payment_logger_debug", _on_payment_logger_debug)
    rustorecore.connect("rustore_on_payment_logger_error", _on_payment_logger_error)
    rustorecore.connect("rustore_on_payment_logger_info", _on_payment_logger_info)
    rustorecore.connect("rustore_on_payment_logger_verbose", _on_payment_logger_verbose)
    rustorecore.connect("rustore_on_payment_logger_warning", _on_payment_logger_warning)

    rustorebilling.init(APPLICATION_ID, DEEPLINK_SCHEME, DEBUG_LOGS)
end

function _on_payment_logger_debug(self, channel, value)
    rustorecore.log_debug(LOG_TAG, value)
end

function _on_payment_logger_error(self, channel, value)
    rustorecore.log_error(LOG_TAG, value)
end

function _on_payment_logger_info(self, channel, value)
    rustorecore.log_info(LOG_TAG, value)
end

function _on_payment_logger_verbose(self, channel, value)
    rustorecore.log_verbose(LOG_TAG, value)
end

function _on_payment_logger_warning(self, channel, value)
    rustorecore.log_warning(LOG_TAG, value)
end

Logging enabling parameter:

DEBUG_LOGS — enable logging (logging will be automatically disabled for Release builds).

All logging callbacks return a JSON string. Available fields:

e — error information or null. The error structure is described in Error Handling;
message – error description.

Changing interface theme

To dynamically change the theme, use the set_theme method.

setTheme usabe example

rustorebilling.set_theme(0)

0 - dark theme;
1 - light theme.

Error handling

Error structure

Processing json error
function _on_failure(self, channel, value)
    local data = json.decode(value)

    local name = data.simpleName
    local message = data.detailMessage
end

simpleName – error name.
detailMessage – error description.

Possible errors

RuStoreNotInstalledException — RuStore is not installed on the user's device;
RuStoreOutdatedException — RuStore version installed on the user's device does not support this SDK;
RuStoreUserUnauthorizedException — user is not authorized in RuStore;
RuStoreRequestLimitReached — not enough time has passed since the process was last shown;
RuStoreReviewExists — this user has already rated your app;
RuStoreInvalidReviewInfo — problems with ReviewInfo;
RuStoreException — basic RuStore error from which other errors are inherited.

On calling the purchase_product method, errors are handled automatically.

Use the set_error_handling method to display the error dialog to the user.

function init(self)
    rustorebilling.set_error_handling(true)

    # rustorebilling initialization
end

true — display dialog;
false — do not display dialog.

Error codes

Below is the list of possible errors that can be received errorCode field.

HTTP code	Error code	Description
`400`	`40001`	Incorrect request parameters: mandatory parameters are not filled in/incorrect parameters format.
`400`	`40003`	App not found.
`400`	`40004`	App status: `inactive`.
`400`	`40005`	Product not found.
`400`	`40006`	Product status: `inactive`.
`400`	`40007`	Invalid product type. Supported types: `consumable`, `non-consumable`, `subscription`.
`400`	`40008`	An order with this `order_id` already exists.
`400`	`40009`	This client already has an active order for this product in the `invoice_created` state. Prompt the client to either complete their payment or cancel the purchase.
`400`	`40010`	For `consumable` products. This customer has and order for this product in the `paid` state. First, the order needs to be consumed (confirmed) in the app, then, you can send another purchase request.
`400`	`40011`	For `non-consumable` products. This client already has an order of this product in the `pre_confirmed`/`confirmed` state. Such product has already been purchased. This product cannot be sold more than once.
`400`	`40012`	For `subscription` products. This client already has an order of this product in the `pre_confirmed`/`confirmed` state. Such product has already been purchased. This product cannot be sold more than once.
`400`	`40013`	For `subscription` products. The data was not received in the `GET/products` (`serviceId`, `user_id`) response.
`400`	`40014`	One or more mandatory attribute was not received in the request.
`400`	`40015`	Failed to change the order status during the purchase update (not allowed).
`400`	`40016`	`quantity` > `1` is specified for a non-consumable product purchase.
`400`	`40017`	Product deleted, new purchases not available.
`400`	`40018`	Cannot consume products with `product type`.
`401`	`40101`	Invalid token.
`401`	`40102`	Token lifetime has expired.
`403`	`40301`	Access to the requested resource is denied (unauthorized).
`403`	`40302`	This call is not authorized for the current token (method not allowed).
`403`	`40303`	The app ID in the request does not match the token.
`403`	`40305`	Incorrect token type.
`404`	`40401`	Not found.
`408`	`40801`	The notification timeout period specified in the request has expired.
`500`	`50***`	Payment service internal error.

6.1.0

Implementation example​

Prerequisites​

Connect to project​

Deeplink handling​

Initialization​

Before you start​

Payments availability check​

Working with SDK​

Retrieving products list​

Purchasing product​

Getting products list​

Getting purchase information​

Consume (confirm) purchase​

Products that require confirmation​

ConfirmPurchase request​

Server validation​

Purchase cancellation​

Handling pending payments​

Event logging​

Changing interface theme​

Error handling​

Error codes​

Implementation example

Prerequisites

Connect to project

Deeplink handling

Initialization

Before you start

Payments availability check

Working with SDK

Retrieving products list

Purchasing product

Getting products list

Getting purchase information

Consume (confirm) purchase

Products that require confirmation

ConfirmPurchase request

Server validation

Purchase cancellation

Handling pending payments

Event logging

Changing interface theme

Error handling

Error codes
