General

RuStore In-app updates SDK supports the current version of the application on the user's device. This helps the user see updates, evaluate performance improvements and the result of bug fixes.

User scenario example

Use RuStore In-app updates SDK to implement various update methods. Currently supported: delayed, silent (without UI from RuStore) and forced update.

Check out the sample app to learn how to properly integrate the update SDK.

Prerequisites

For the RuStore In-app updates SDK to work, the following conditions must be met.

App uploaded to RuStore Console.
App passed moderation (you don't have to publish the app).

Important

Test build signature (for example: debug) of the app must match the signature of the app build that was uploaded to the console and passed moderation (for example, release).

Android 8.0 or later.
RuStore app version on the device is up-to-date.
User is authorized in RuStore.
RuStore app is allowed to install applications.

Connecting to the project

To connect, follow these steps.

Copy plugin projects from the official RuStore repository to GitFlic.
Open the Android project from the extension_libraries folder in your IDE.
Build the project with the gradle assemble command. If the build is successful, the following files will be created in the appupdate_example/extension_rustore_appupdate/lib/android and appupdate_example/extension_rustore_core/lib/android folders:

RuStoreDefoldAppUpdate.jar
RuStoreDefoldCore.jar

Copy the appupdate_example/extension_rustore_appupdate and appupdate_example/extension_rustore_core folders to the root of your project.

Create update manager

Before calling library methods, you must create an update manager.

function init(self)
    rustoreappupdate.init()
end

Check for updates

Before requesting an update, check to see if an update is available for your application. To check for updates, call the method get_appupdateinfo. When calling this method, the following conditions are checked.

The current version of RuStore is installed on the user's device.
The user and the app are not banned in RuStore.
RuStore app is allowed to install applications.
User is authorized in RuStore.

Before using the method, you must subscribe to events once:

rustore_get_app_update_info_success;
rustore_get_app_update_info_failure.

Subscribe to events
function init(self)
    rustorecore.connect("rustore_get_app_update_info_success", _on_get_app_update_info_success)
    rustorecore.connect("rustore_get_app_update_info_failure", _on_get_app_update_info_failure)

    -- Initializing rustoreappupdate
end

function _on_get_app_update_info_success(self, channel, value)
    local data = json.decode(value)
end

function _on_get_app_update_info_failure(self, channel, value)
    local data = json.decode(value)
end

Method call get_appupdateinfo
rustoreappupdate.get_appupdateinfo()

The callback rustore_get_app_update_info_success returns line JSON, which contains information about the need for an update. Request this information in advance to start the update download without delay at a convenient time for the user.

updateAvailability — update availability:
- UNKNOWN (int == 0) — by default.
- UPDATE_NOT_AVAILABLE (int == 1) — no update needed.
- UPDATE_AVAILABLE (int == 2) — an update is required to be downloaded or an update has already been downloaded to the user's device.
- DEVELOPER_TRIGGERED_UPDATE_IN_PROGRESS (int == 3) — the update is already downloading or installation has already started.
installStatus — update installation status if the user is already installing the update at the current time:
- UNKNOWN (int == 0) — by default.
- DOWNLOADED (int == 1) — downloaded.
- DOWNLOADING (int == 2) — downloading.
- FAILED (int == 3) — error.
- PENDING (int == 5) — in anticipation.
availableVersionCode — update version code.

The callback rustore_get_app_update_info_failure returns line JSON with error information. The error structure is described in the Error Handling section.

info

An update download can only be started if the updateAvailability field contains the valueUPDATE_AVAILABLE.

Download and install updates

Using listener

After confirming update availability, you can receive the update download status. To do this, you need to subscribe to the on_state_updated event and call the register_listener method to launch a download status listener.

Check update status

Subscription to the rustore_on_state_updated event is performed once. Listening to the download process is activated using the register_listener method.

Запуск слушателя
function init(self)
    -- Initialization rustoreappupdate

    rustorecore.connect("rustore_on_state_updated", _on_state_updated)
    rustoreappupdate.register_listener()
end

function _on_state_updated(self, channel, value)
    local data = json.decode(value)
end

The rustore_on_state_updated callback returns a JSON string (an InstallState object) with information about the progress of the update process. The object contains the following fields.

installStatus — update installation status if the user is already installing the update at the current time:
- UNKNOWN (int == 0) — by default.
- DOWNLOADED (int == 1) — downloaded.
- DOWNLOADING (int == 2) — downloading.
- FAILED (int == 3) — error.
- PENDING (int == 5) — in anticipation.

PLEASE NOTE

The update SDK does not have a special status for the situation when the user has canceled the update download. If the user aborted the update during the download phase, installStatus returns the original status UNKNOWN (0) with a Download button.

If the user has already downloaded the update, but canceled the installation, then installStatus will return the value DOWNLOADED (1).

Let's consider the following options.

The user started downloading the update, but canceled the download - in this case:
- updateAvailability - UPDATE_AVAILABLE (2);
- installStatus - UNKNOWN (0).
The user downloaded the update file, but did not install it - in this case:
- updateAvailability - UPDATE_AVAILABLE (2);
- installStatus - DOWNLOADED (1).

bytesDownloaded — number of bytes downloaded.
totalBytesToDownload — the total number of bytes to download.
packageName — service pack name.
installErrorCode — error code during download. Error codes are described in the section Error handling.

Delete listener

If the listener is no longer needed, use the unregister_listener method to remove the listener.

Method call unregister_listener
rustoreappupdate.unregister_listener()

Start downloading update

Delayed update

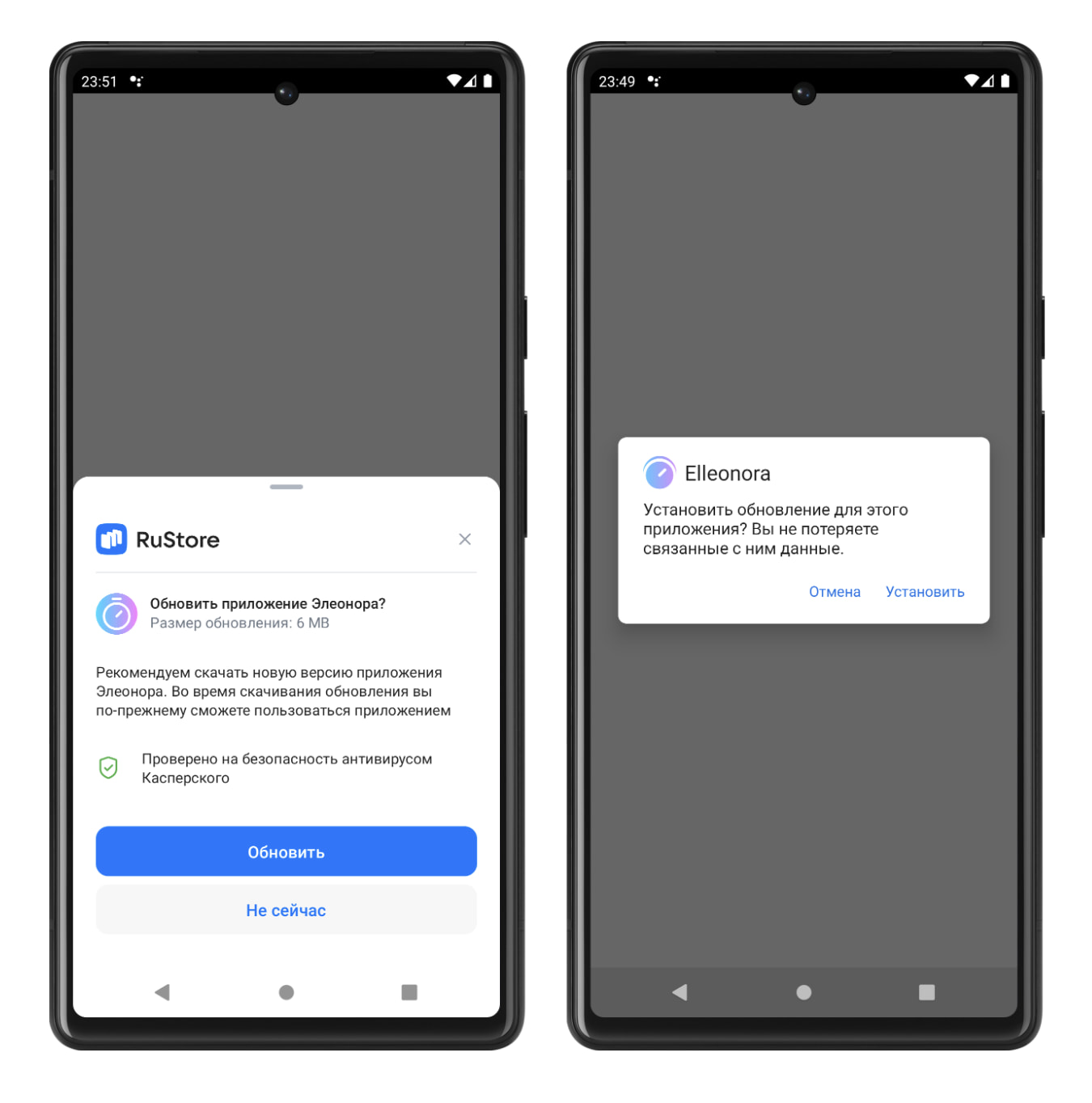

Description of deferred update scenario

Update with UI from RuStore

The user will be shown a dialog with the RuStore UI to confirm the update.
When you click the Update button, a dialog box will appear to confirm the installation of the update.

Run update script

Before using the methods for launching update scripts, you must subscribe to events once:

rustore_start_update_flow_success;
rustore_start_update_flow_failure.

To start downloading an application update, use the start_update_flow_delayed method.

info

The AppUpdateInfo object becomes invalid after a single use. To call the start_update_flow_delayed method again, request the AppUpdateInfo object again using the get_appupdateinfo method.

See the Checking for updates section.

Subscribe to events
function init(self)
    rustorecore.connect("rustore_start_update_flow_success", _on_start_update_flow_success)
    rustorecore.connect("rustore_start_update_flow_failure", _on_start_update_flow_failure)

    -- Initialization rustoreappupdate
end

function _on_start_update_flow_success(self, channel, value)
    local data = json.decode(value)
end

function _on_start_update_flow_failure(self, channel, value)
    local data = json.decode(value)
end

Method call start_update_flow_delayed
rustoreappupdate.start_update_flow_delayed()

The rustore_start_update_flow_success callback returns a JSON string with information about the update result in the flowResult (number) field:

RESULT_OK (int = -1) - the user confirmed downloading the update.
RESULT_CANCELED (int = 0) - the user refused to download the update.

The rustore_start_update_flow_failure callback returns a JSON string with error information. The error structure is described in the Error Handling section.

After receiving the DOWNLOADED (int == 1) status in the installStatus field of the InstallState object, the install update method can be called.

Forced update

Description of the forced update scenario

Update with UI from RuStore

The user will be shown a full-screen dialog with the RuStore UI to confirm the update. Application use will be blocked until the update is installed.
When you click the Update button, a dialog box will appear to confirm the installation of the update.
Next, when you click on the Install button, a full-screen dialog about installing a new version of the application will appear.
Once the installation is complete, the application will restart.

caution

The application will be restarted if the Rustore version is greater than or equal to 1.37. If the version of Rustore is lower, the application will close to install the update and will not be reopened when the update is completed.

Running the update script

After receiving a successful response from get_appupdateinfo, you can check the availability of a force update using the methodcheck_is_immediate_update_allowed.

Вызов метода check_is_immediate_update_allowed
local isAvailable = rustoreappupdate.check_is_immediate_update_allowed()

true - forced update is available.
false - forced update is not available.

Result of the method check_is_immediate_update_allowed is recommended to be used to decide whether to run a forced update, but this result does not affect the ability to run the script. The need to run the update script may occur according to your internal logic.

Before using the methods for launching update scripts, you must subscribe to events once:

rustore_start_update_flow_success;
rustore_start_update_flow_failure.

To start downloading an application update, use the start_update_flow_immediate method.

info

The AppUpdateInfo object becomes invalid after a single use. To call the start_update_flow_immediate method again, request the AppUpdateInfo object again using the get_appupdateinfo method.

See the Checking for updates section.

Subscribe to events
function init(self)
    rustorecore.connect("rustore_start_update_flow_success", _on_start_update_flow_success)
    rustorecore.connect("rustore_start_update_flow_failure", _on_start_update_flow_failure)

    -- Initialization rustoreappupdate
end

function _on_start_update_flow_success(self, channel, value)
    local data = json.decode(value)
end

function _on_start_update_flow_failure(self, channel, value)
    local data = json.decode(value)
end

Method call start_update_flow_immediate
rustoreappupdate.start_update_flow_immediate()

The rustore_start_update_flow_success callback returns a JSON string with information about the update result in the flowResult (number) field:

RESULT_OK (int = -1) - update completed, the code may not be received, because the application terminates at the time of update.
RESULT_CANCELED (int = 0) - the flow was interrupted by the user or an error occurred. It is assumed that upon receiving this code, the application should be terminated.
ACTIVITY_NOT_FOUND (int = 2) - RuStore is not installed, or a version is installed that does not support forced updating (RuStore versionCode < 191).

The rustore_start_update_flow_failure callback returns a JSON string with error information. The error structure is described in the Error Handling section.

If the update is successful, no further action is required.

Silent update

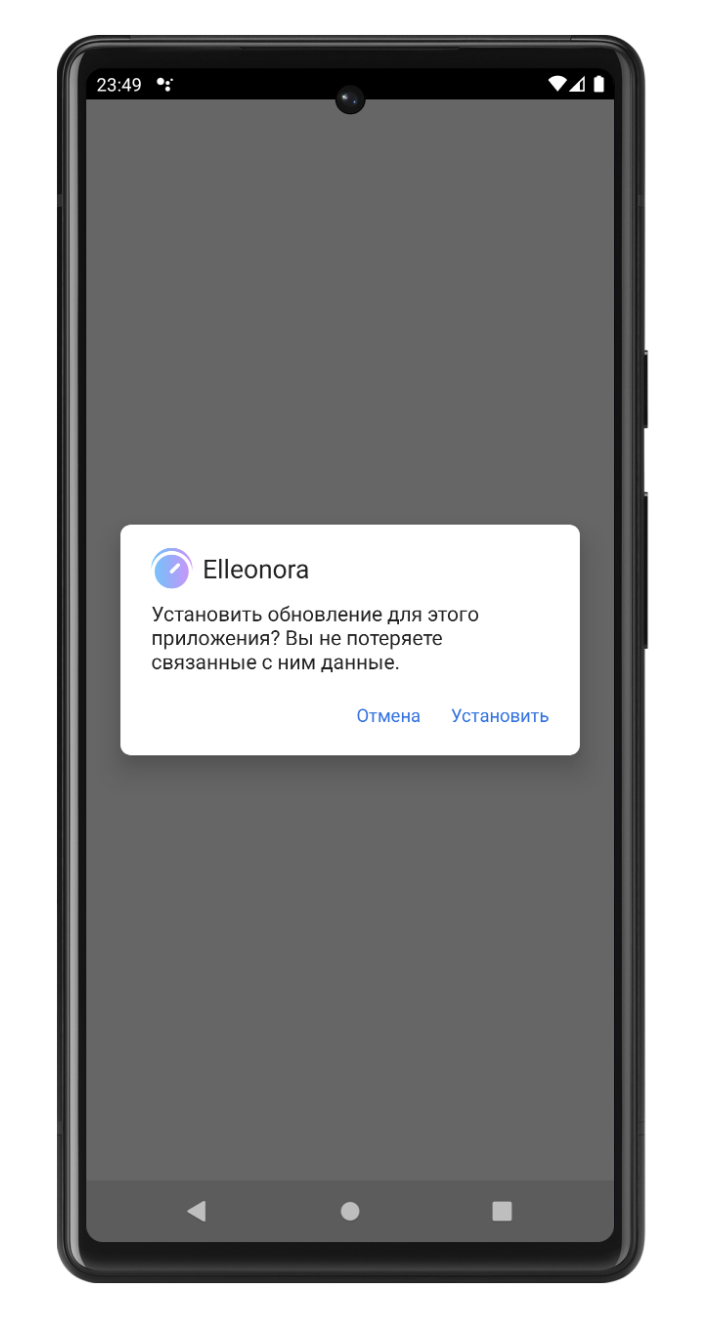

Description of silent update scenario

Update without UI from RuStore

The user will be shown a dialog box to confirm the installation of the update (the update will be downloaded in the background).

Run update script

Before using the methods for launching update scripts, you must subscribe to events once:

rustore_start_update_flow_success;
rustore_start_update_flow_failure.

To start downloading an application update, use the start_update_flow_silent method.

info

The AppUpdateInfo object becomes invalid after a single use. To call the start_update_flow_immediate method again, request the AppUpdateInfo object again using the get_appupdateinfo method.

See the Checking for updates section.

Subscribe to events
function init(self)
    rustorecore.connect("rustore_start_update_flow_success", _on_start_update_flow_success)
    rustorecore.connect("rustore_start_update_flow_failure", _on_start_update_flow_failure)

    -- Initialization rustoreappupdate
end

function _on_start_update_flow_success(self, channel, value)
    local data = json.decode(value)
end

function _on_start_update_flow_failure(self, channel, value)
    local data = json.decode(value)
end

Вызов метода start_update_flow_silent
rustoreappupdate.start_update_flow_silent()

The rustore_start_update_flow_success callback returns a JSON string with information about the update result in the flowResult (number) field:

RESULT_OK (int = -1) - the update download task has been registered.

The rustore_start_update_flow_failure callback returns a JSON string with error information. The error structure is described in the Error Handling section.

Call the install update method after receiving the DOWNLOADED (int == 1) status in the installStatus field of the InstallState object.

tip

For a silent update, it is recommended to implement your own interface.

Update installation

Once the update file download is complete, you can start installing the update. The update occurs through the native Android tool. To start the update installation, use the following methods:

complete_update_flexible - update and restart the application;
complete_update_silent - update and close the application.

tip

It is recommended to notify the user that the update is ready for installation.

Before using the methods, you must subscribe to the event once:

on_complete_update_failure.

Subscribe to an event
function init(self)
    rustorecore.connect("rustore_complete_update_failure", _on_complete_update_failure)

    -- Initialization rustoreappupdate
end

function _on_complete_update_failure(self, channel, value)
    local data = json.decode(value)
end

The rustore_complete_update_failure callback returns a json string with error information. The error structure is described in the Error Handling section.

Flexible upgrade completion

Method call complete_update_flexible
rustoreappupdate.complete_update_flexible()

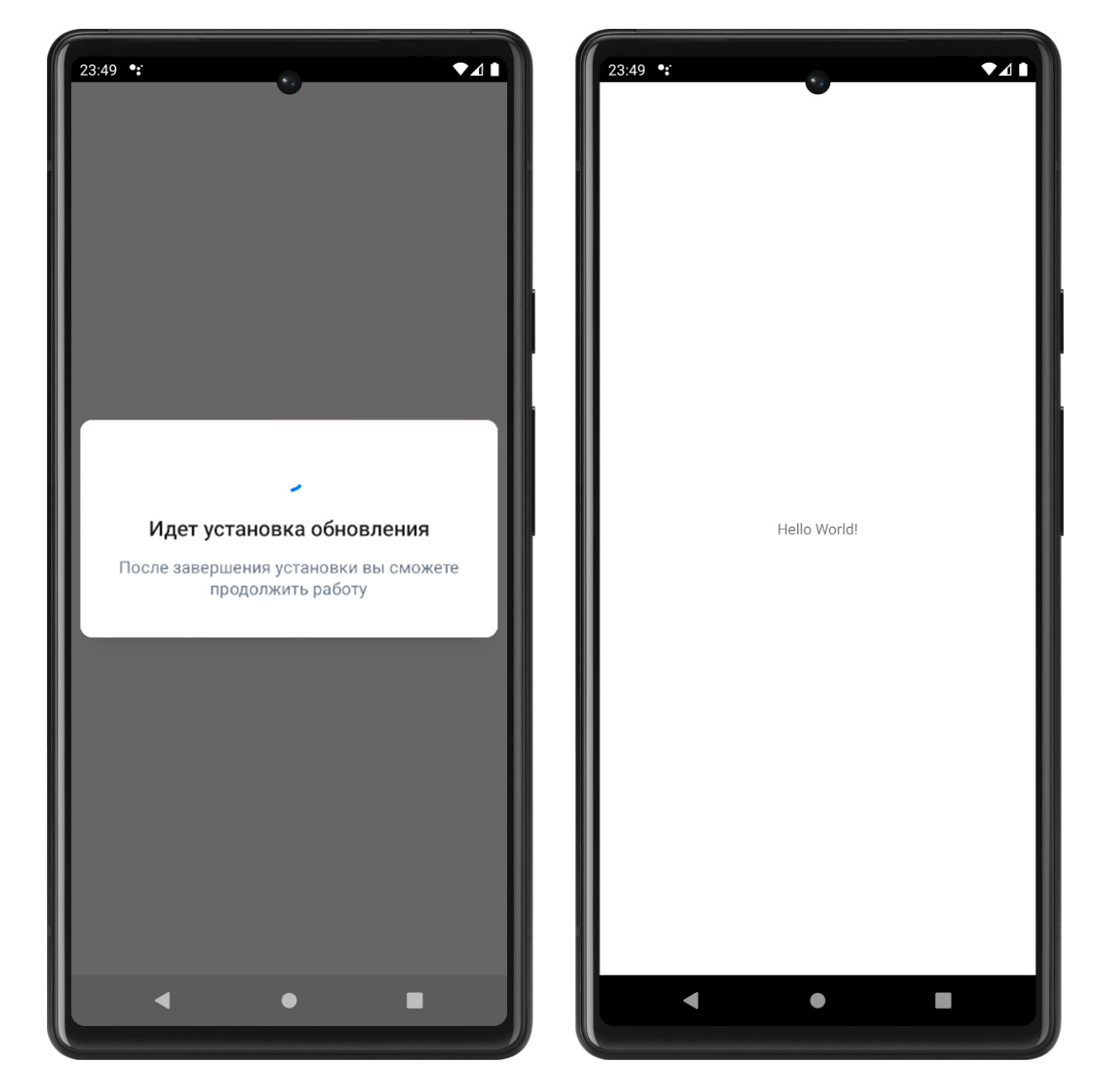

Update with UI from RuStore:

The user will be shown a UI dialog to complete the update.
If the update is successful, the application will be restarted.

Silent upgrade completion

Вызов метода complete_update_silent
rustoreappupdate.complete_update_silent()

Update without UI from RuStore:

The update completion UI dialog will not be shown.
If the update is successful, the application will be closed.

Errors processing

tip

When receiving any *_failure event, it is not recommended to display an error to the user yourself. Displaying an error may negatively impact the user experience.

JSON error handling
function _on_failure(self, channel, value)
    local data = json.decode(value)

    local name = data.simpleName
    local message = data.detailMessage
end

simpleName – error name.
detailMessage – error description.

Possible errors

RuStoreNotInstalledException — RuStore is not installed on the user's device;
RuStoreOutdatedException — RuStore version installed on the user's device does not support this SDK;
RuStoreUserUnauthorizedException — user is not authorized in RuStore;
RuStoreException — basic RuStore error from which other errors are inherited;
RuStoreInstallException(public val code: Int) — download and installation error.
- ERROR_UNKNOWN(Int = 4001) — unknown error.
- ERROR_DOWNLOAD(Int = 4002) — error while downloading.
- ERROR_BLOCKED(Int = 4003) — installation blocked by system.
- ERROR_INVALID_APK(Int = 4004) — invalid update APK.
- ERROR_CONFLICT(Int = 4005) — conflict with the current app version.
- ERROR_STORAGE(Int = 4006) — insufficient device storage.
- ERROR_INCOMPATIBLE(Int = 4007) — incompatible with device.
- ERROR_APP_NOT_OWNED(Int = 4008) — application not purchased.
- ERROR_INTERNAL_ERROR(Int = 4009) — internal error.
- ERROR_ABORTED(Int = 4010) — user refused to install the update.
- ERROR_APK_NOT_FOUND(Int = 4011) — APK for installation not found.
- ERROR_EXTERNAL_SOURCE_DENIED(Int = 4012) — update prohibited. For example, the first method responses that an update is not available, but the user calls the second method.
- ERROR_ACTIVITY_SEND_INTENT(Int = 9901) — error while sending intent for opening an activity.
- ERROR_ACTIVITY_UNKNOWN(Int = 9902) — unknown error on activity opening.

General​

User scenario example​

Prerequisites​

Connecting to the project​

Create update manager​

Check for updates​

Download and install updates​

Using listener​

Check update status​

Delete listener​

Start downloading update​

Delayed update​

Forced update​

Silent update​

Update installation​

Flexible upgrade completion​

Silent upgrade completion​

Errors processing​

Possible errors​

General

User scenario example

Prerequisites

Connecting to the project

Create update manager

Check for updates

Download and install updates

Using listener

Check update status

Delete listener

Start downloading update

Delayed update

Forced update

Silent update

Update installation

Flexible upgrade completion

Silent upgrade completion

Errors processing

Possible errors
